Getting closer to the action with IOI Victorem 2KSDI-Mini
and 4KSDI-Mini rugged compact cameras

Multi camera remote shading over IP networks

Any number of cameras can be controlled from a single panel
CI0 provides serial camera control over IP
PoE for data and control over a single cable
Tally indicators on CI0 or external LED

Available Controls

Auto and manual exposure (adjusts exposure, gain and/or iris with Canon EF lenses)
Auto and manual white balance
Primary corrections: gains, gamma, pedestals, saturation
Image Enhancement: sharpening, user LUTs, color matrix
Primary corrections: gains, gamma, pedestals, saturation
Image Enhancement: sharpening, user LUTs, color matrix
2KSDI-Mini, 2KSDI-Mini-RS
4KSDI-Mini, 4KSDI-Mini-RS

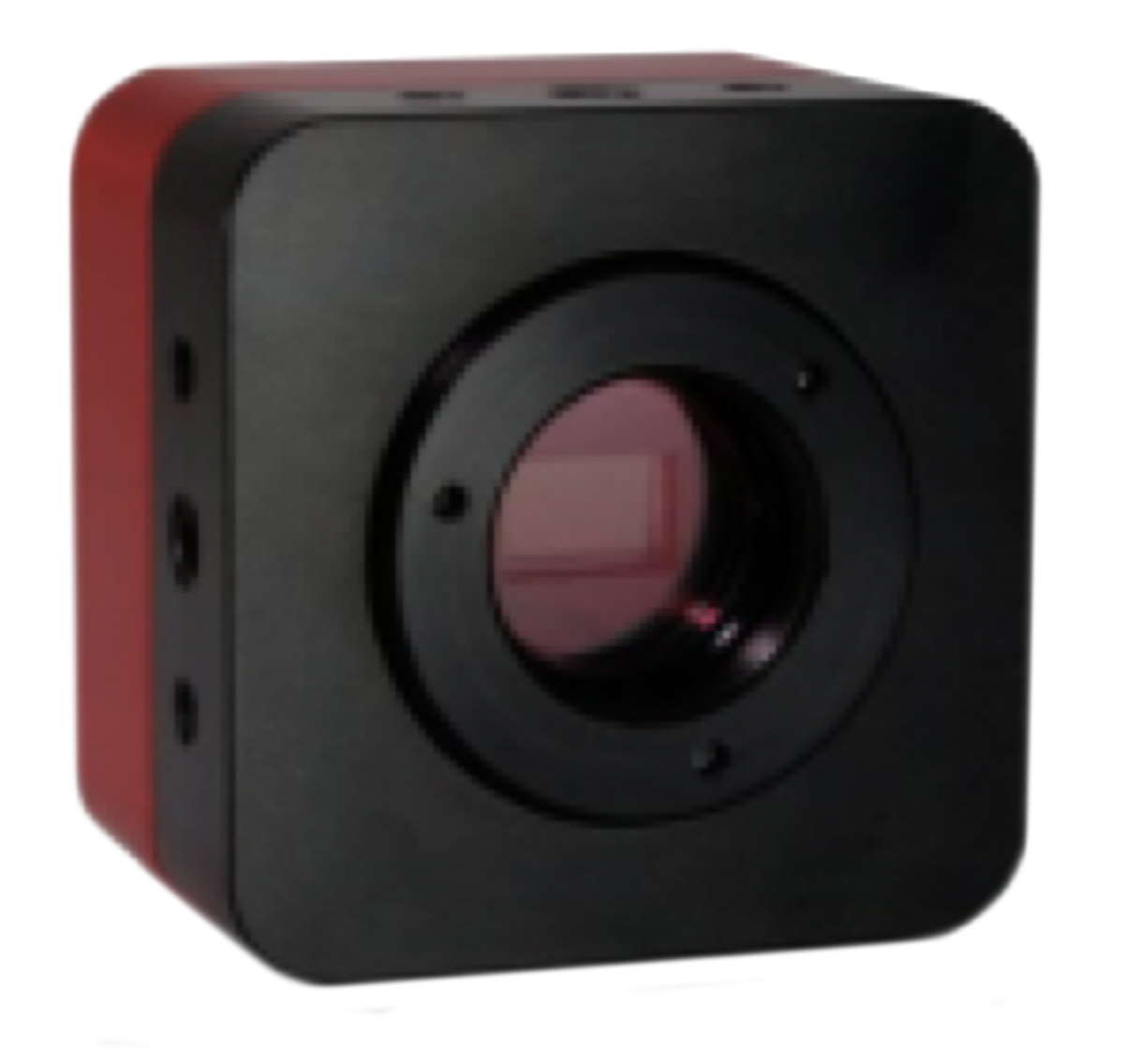

Flare 2KSDI
Flare 4KSDI

Victorem SDI Series

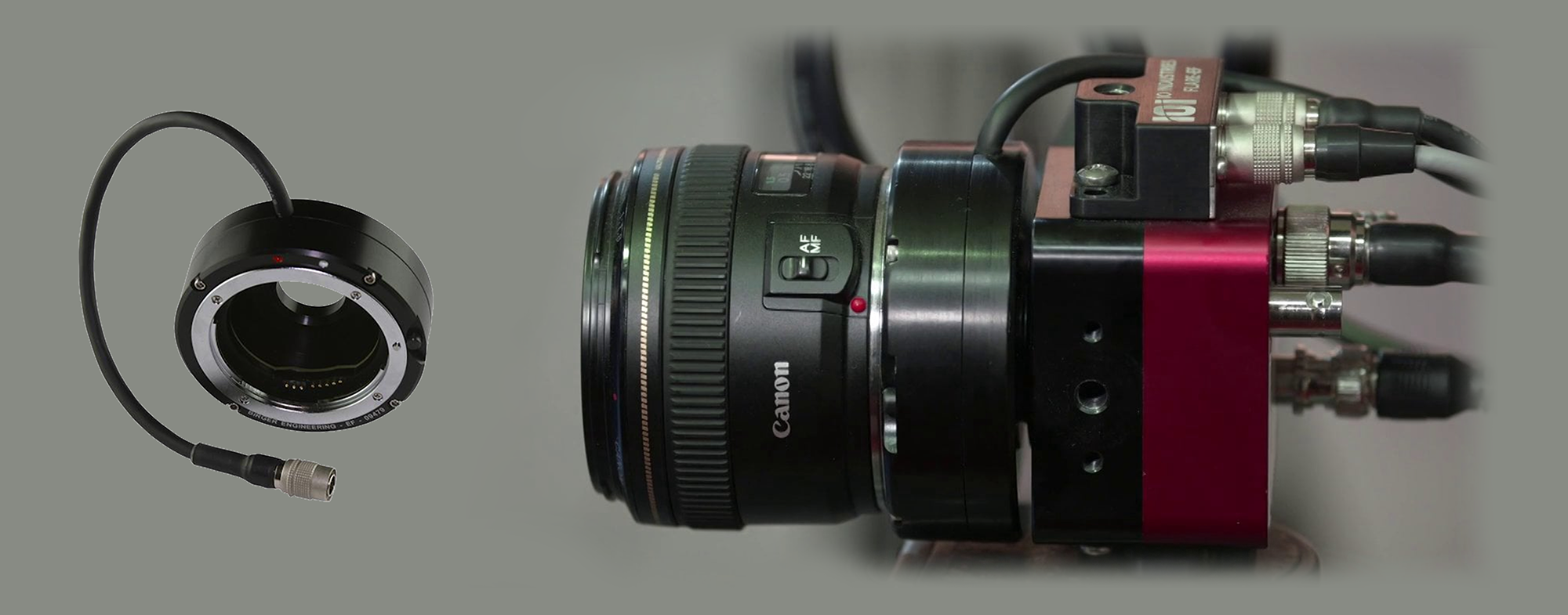

Iris/focus control

When using a Canon EF lens with the VICLENSMOUNT-A mount, iris and focus control are available from the RCP panel.

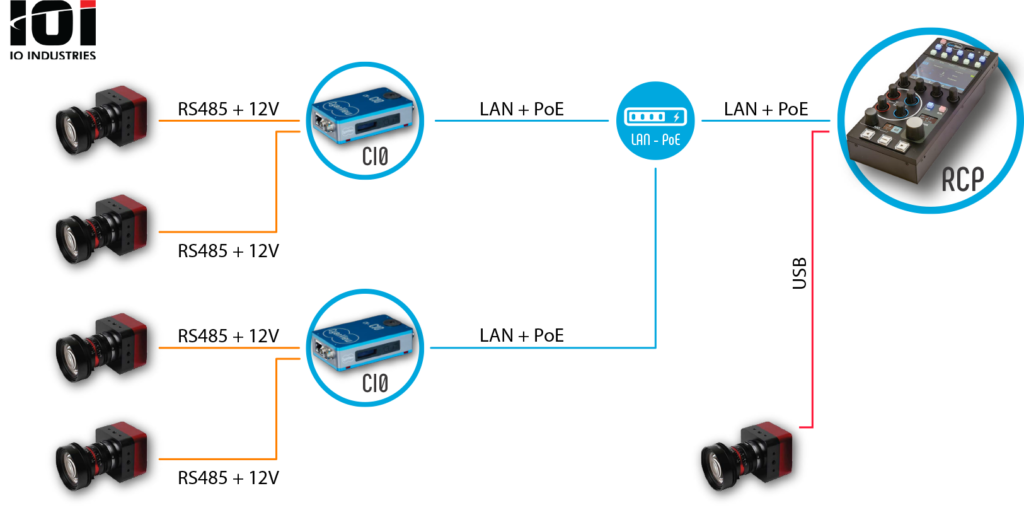

Interface cameras over IP or USB

Any number of cameras can be controlled from a single panel
Up to 2 cameras can be connected on each CI0 unit
Cameras can also be controlled over a direct USB connection to the RCP

Combine camera and gimbal on the same CI0 interface

Add pan/tilt/roll control using a gimbal such as the DJI Ronin S/SC
Gimbal control over SBUS
Pan/tilt/roll controls using the RCP touchscreen
Affordable USB joystick option

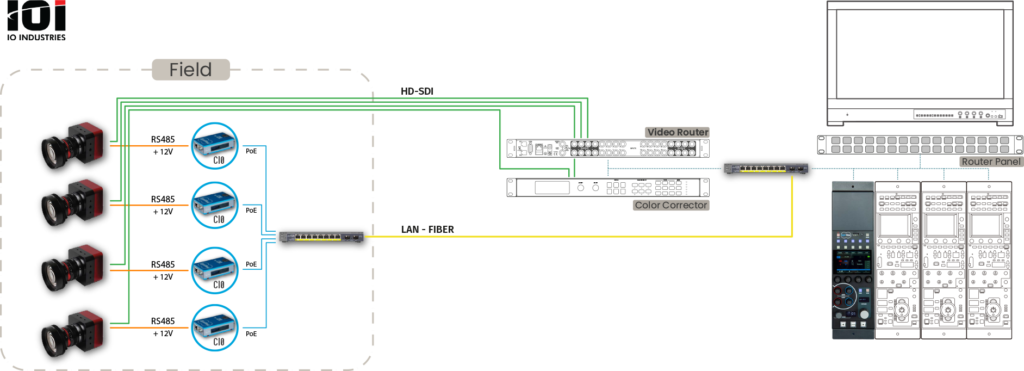

Seamless integration in your live production workflow

Full camera shading provides you with what it takes to match cameras together
Video router integration so the RCP automatically controls the camera selected on the monitor
Possible integration of other camera makes and models and color correctors
Multi Camera RCP
Read More
CI0 Camera Interface
Read More
Router Integration
Read More
Color Corrector Integration
Read More

Anything

Any Camera
Tally
Lenses
Pan/Tilt Heads

Anywhere

Direct Ethernet
Wifi
Internet
Cellular 4G / LTE
RF Modems *Future option

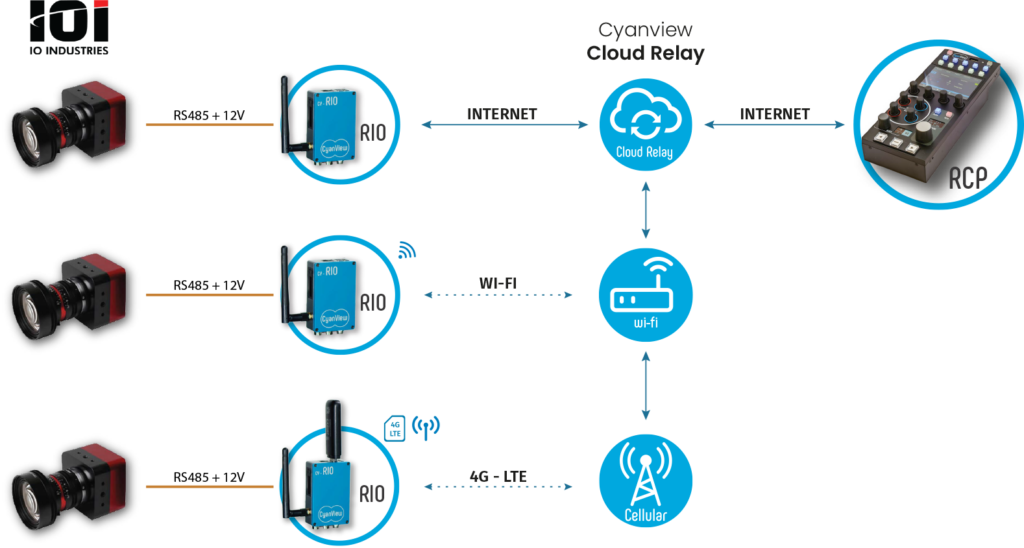

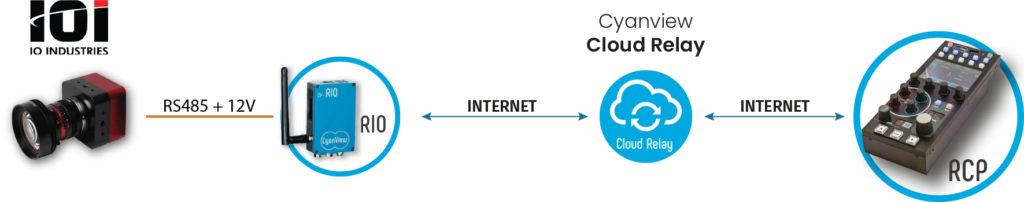

Remote production: control from anywhere in the worldote production:

RIO and Cyanview’s cloud relay enables camera control over any internet connection: wired, wi-fi or cellular
The Cloud Relay service is designed to run without any special configuration of the routers
Anything can be controlled remotely, not only the camera but tally, lens or pan/tilt heads and gimbals

RIO

RIO provides 2 serial ports for cameras just like the CI0

Wi-Fi, Ethernet, Internet, 4G-LTE

RIO extends camera control over any communication channel.
Plug the RCP to an internet access.
RIO can connect to the internet with a direct access, with a Wi-Fi access point or with a 4G-LTE dongle and a SIM card

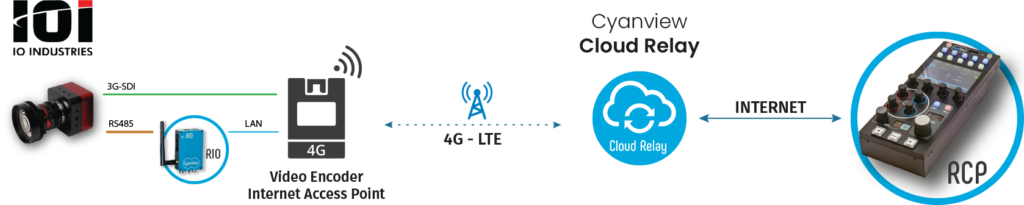

Add camera control to Cellular video streaming

RIO can use its own 4G dongle or the internet access point that most Cellular Streaming solutions will provide over Wi-Fi or LAN.
